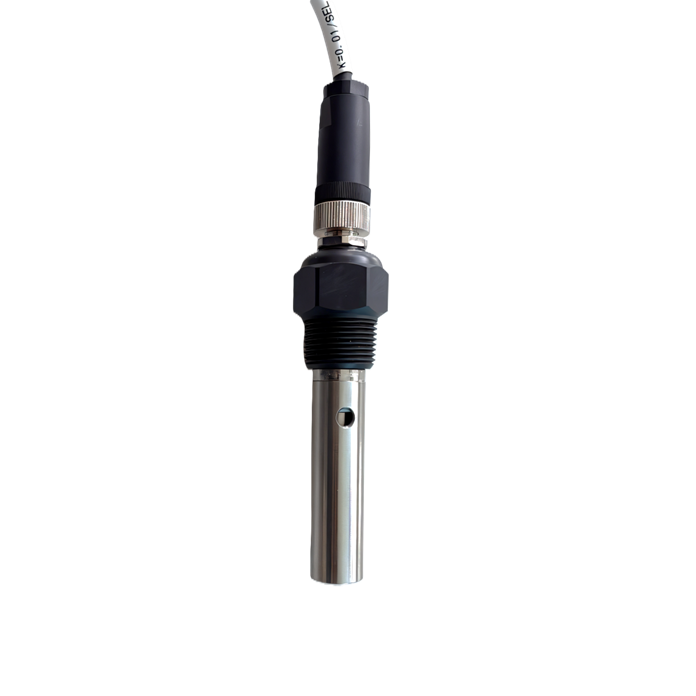

TDS SENSOR

Power supply and output isolation design to ensure electrical safety
RS-485 transmission interface, MODBUS-RTU communication protocol, two-way communication
Output more electrode diagnostic information, more intelligent

Specifications	Details
MODEL	ZY-CON-TDS
MAIN MATERIAL	Shell: PPS; Cable: PVC; Electrode: Glass core
MEASUREMENT RANGE	0-150 ppm
RESOLUTION	0.1 ppm
REPEATABILITY	±0.1 ppm
TEMPERATURE RANGE	0-80°C (Non-freezing)
PRESSURE RANGE	≤0.6Mpa
RESPONSE TIME	≤10 seconds
CABLE LENGTH	Standard:5m, the maximum can be extended to 15M
TEMPERATURE COMPENSATION	NTC-10K
