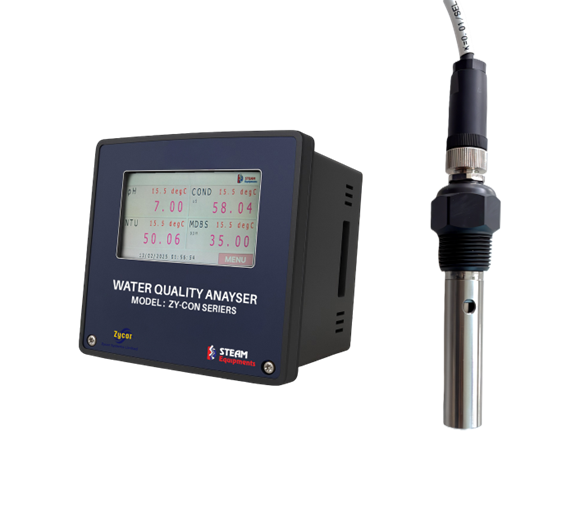

CONDUCTIVITY SENSOR
Universal Controller / Transmitter
Conductivity Sensor
TDS Sensor
PH ORP Transmitter
PH Sensor
ORP Sensor
COD, BOD, TSS, TOC Analyzer
Online High Range Turbidity Analyzer
Online Low Range Turbidity Analyzer
Chlorine Analyzer
Silica Analyzer
Fluoride Analyzer
DO Analyzer
Sulphide Analyzer
Online Suspended Solid Analyzer
Oil In Water Analyzer
Chloride Analyzer
Phosphate Analyzer
Hardness Analyzer
Ammonia Nitrogen Analyzer
Phenol Analyzer
Key Features
- Power supply and output isolation design to ensure electrical safety
- RS-485 transmission interface, MODBUS-RTU communication protocol, two-way communication
- Output more electrode diagnostic information, more intelligent
Technical Specifications
| Specifications | Details |
|---|---|
| MODEL | ZY-CON-COND |
| MAIN MATERIAL | Ryton |
| MEASUREMENT RANGE | 0.0~200.0 us/cm; 0-2000 us/cm; 20.00 ms/cm |
| RESOLUTION | 0.1 us/cm |
| REPEATABILITY | ±0.1 us/cm |
| TEMPERATURE RANGE | 0-80°C (Non-freezing) |
| PRESSURE RANGE | ≤0.6 Mpa |
| RESPONSE TIME | ≤10 seconds |
| CABLE LENGTH | Standard:5m, the maximum can be extended to 15M |
| TEMPERATURE COMPENSATION | NTC-10K |
