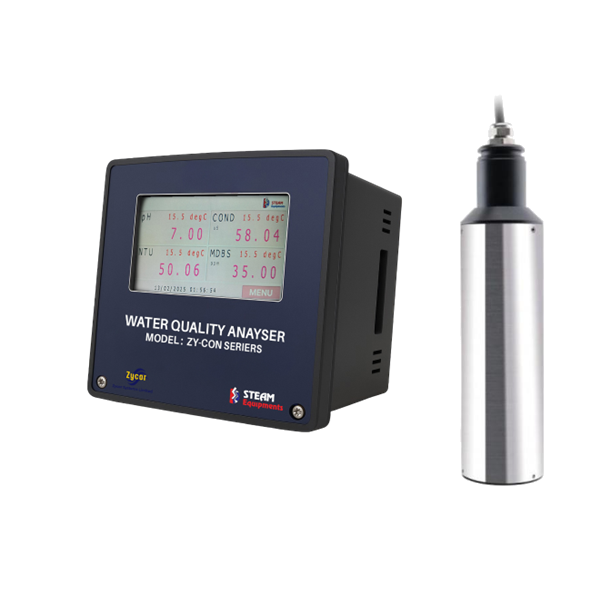

ONLINE SUSPENDED SOLID ANALYZER

Specifications	Details
MODEL	ZY-CON-MLSS
SENSOR MATERIAL	Body: PVC ; O-ring: Fluorine rubber ;Cable: PVC
SENSOR WATERPROOF GRADE	IP68
ACCURACY	less than ± 3.5 % of measured value (depending on the homogeneity of the MLSS)
MEASURING RANGE	MLSS concentration: 0.1 ~ 20000 mg/L, 0.1 ~ 45000 mg/L, 0.1 ~ 120000 mg/L
VELOCITY OF FLOW	≤2.5m/s, 8.2ft/s
PRESSURE RANGE	≤0.4Mpa
STORAGE TEMPERATURE	-15 ~ 65°C
AMBIENT TEMPERATURE FOR MEASUREMENT	0 ~ 45°C
CALIBRATION	Calibration of sample, slope calibration
CABLE LENGTH	5m standard cable, can be extended up to 100m
DISPLAY	LCD with back lights in English
COLOR	Black
AMBIENT TEMPERATURE	-20 to +55°C (-5 - 130 °F).
STORAGE TEMPERATURE	-30 to +70°C (-20 - 160 °F).
HUMIDITY	10 to 90% RH at 40°C (100 °F)
SELF GLASS CLEANING OPTION	Yes
